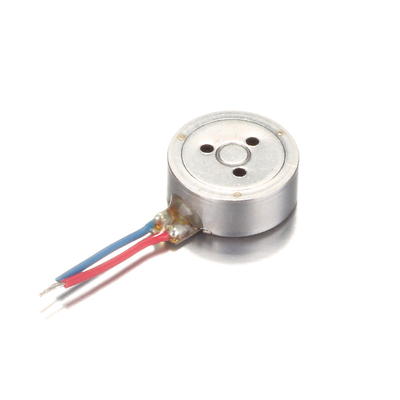

Wearable Device Vibration Force LRA Trigger Much Stronger Haptic Motor For Wearable Device

Much Stronger Vibration Force LRA Haptic Actuator motor for Wearable Device

LRA Structure:

Electrical Data:

Product Drawing:

Introduction to Linear Motor:
(1) This is the newly developed Linear Motor vibrating in direction Z with a very long life time of 1 million cycles at the test mode 2s On 1s Off as one cycle.
(2) This Linear Motor also have a very strong acceleration/ vibration force at its peak acceleration value around 1.7G, much stronger than other normal brushed ERM type coin motors at 0.6-1.2G usually.
(3) This Linear Motor is specially for high-end and high reliable electronic consumer products.
(4) When compared to standard brushed ERM vibration motors, LRA’s are higher in price and must be used with external driver IC.
Unlike conventional brushed DC vibration motors, linear resonant actuators must be driven by an AC signal at the devices resonant frequency. A number of companies make IC drivers for linear vibration motors that supply the correct drive signals and contain a library of haptic effects you can choose from. TI is one such company that makes LRA drivers IC’s. TI makes and evaluation board that incorporates the TI DRV2605L haptic driver IC. See below link for info:

https://www.adafruit.com/product/2305

If the LRA 0832 is too big for you, we do have LRA 0825 motor, with 8.0 diameter, 2.5mm thickness.

APPLICATIONS:

You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, the total lifetime can be 1 million cycles.

1) Competitive Advantages

2) Production workshop

3) Testing equipments

4) Packing & Shipping

Packing Details

100pcs per tray, 8000 pcs per carton
Carton size: 46cm*28.5cm*30.5cm
Gross weight: 8.0kgs/ carton
Inner box bubble, then carton. And then reinforced with plastic pallet for outer packing. Or according to client's requirement.

Shipping Details

Samples Can be shipped within 10 days.

Mass production order leading time according to the actual situatio.
